BPF-WD3-00037

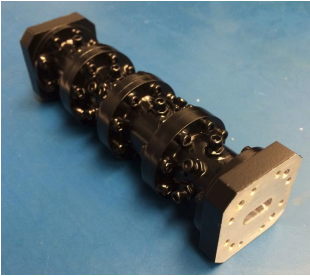

23GHz Dual Mode TE113 Filter
- 8,4,0 Dual Mode TE113 Waveguide Filter
- Fc=23.45GHz
WD-Series: Dual Mode Filters
Dual Mode Cylindrical Filters use TE11N mode resonators with high Q factors for low pass-band insertion loss, making it suitable for narrow pass-bands. Higher order modes (higher N values in TE11N) provide higher Q factors but the physical length will increase and the number of spurious modes surrounding the operating frequency will also increase.
Waveguide Dual Mode Bandpass Filters
- Very High Q Dual Mode Cylindrical Resonator for Low Insertion Loss
- Covers up to 40GHz
- 3dB Bandwidth up to 5%
- Standard mode is TE111
- Designs with higher Q factor using TE113 are available
Part number for ordering:
- Center Frequency (MHz)
- 3dB Bandwidth (MHz)
- Number of Sections
- Flange Size
- TE111=WD1, TE113=WD3
Interface:
| WR15 | 15 |
| WR19 | 19 |
| WR22 | 22 |
| WR28 | 28 |
| WR34 | 34 |
| WR42 | 42 |
| WR51 | 51 |
| etc | etc |

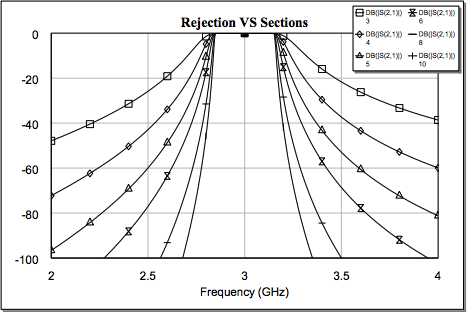

Plot is for reference only. Contact Exceed Microwave for assistance.

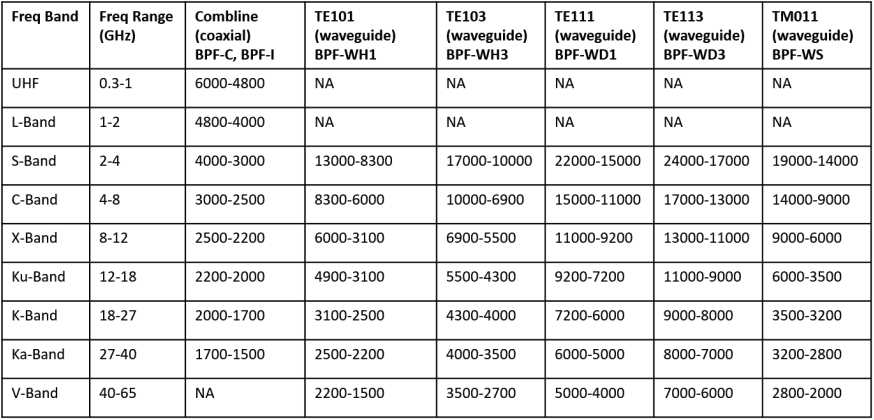

Typical Resonator Q Factor
- Q factors can vary from the values on the table depending on other requirements, such as size, finish.
