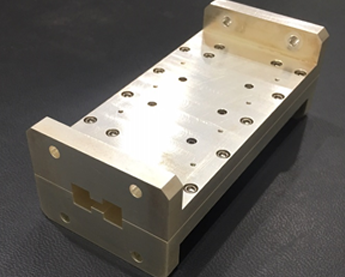

Ka Band Waveguide Notch Filter
- WR34 Notch Filter
- 6 Sections

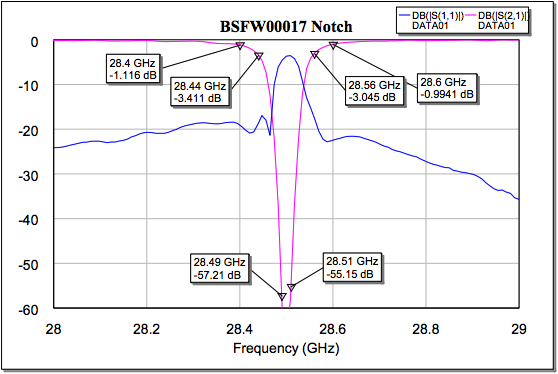

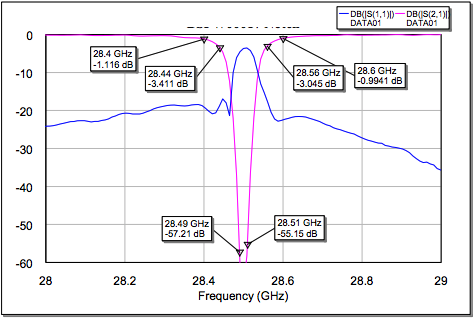

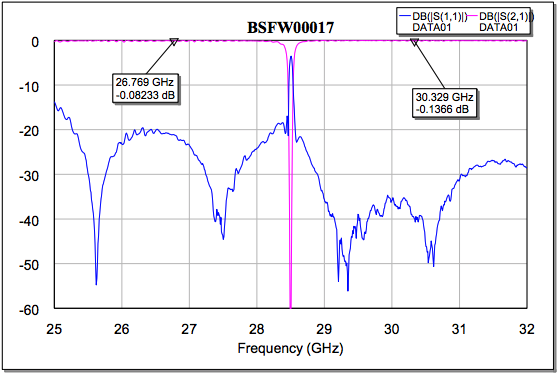

- 20MHz, 55dB notch
- Silver plated Invar
Notch Filters
Exceed Microwave can provide notch filters with very narrow bandwidths. Our double ridge waveguide notch filter allows a very wide pass-band outside the notch.

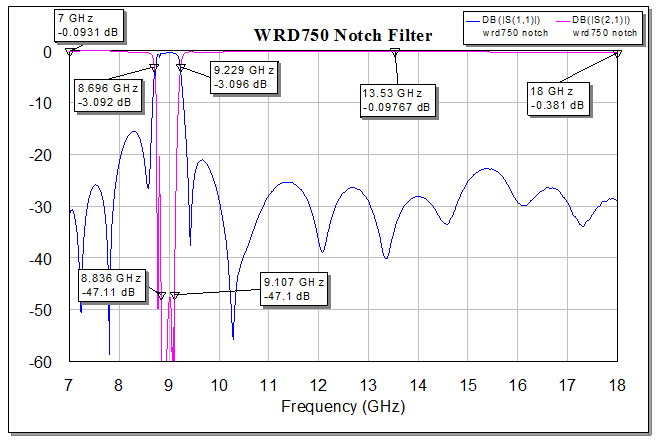

BSF-W-00053 shows a very wide pass-band with no spurious resonance up to 18GHz and low insertion loss.
BSF-W-00053
WRD 750 Wide Pass-Band Waveguide Notch Filter
- WRD750 8 Section Waveguide Notch Filter
- 45dB Notch
- NO SPURIOUS Notch Resonance up to 18GHz
- Low Insertion Loss across pass-band, <0.4dB
- >21dB return loss across most of the pass-band
- Silver plated Aluminum
Waveguide Bandstop Filters
- Low insertion loss
- Covers up to 67GHz
- High Rejection
Part number for ordering:
- Center Frequency (MHz)
- 3dB Bandwidth (MHz)
- Number of Sections
- Flange Size
Interface:
| WR15 | 15 |
| WR19 | 19 |
| WR22 | 22 |
| WR28 | 28 |
| WR34 | 34 |
| WR42 | 42 |
| WR51 | 51 |
| etc | etc |
Plot is for reference only. Contact Exceed Microwave for assistance.
