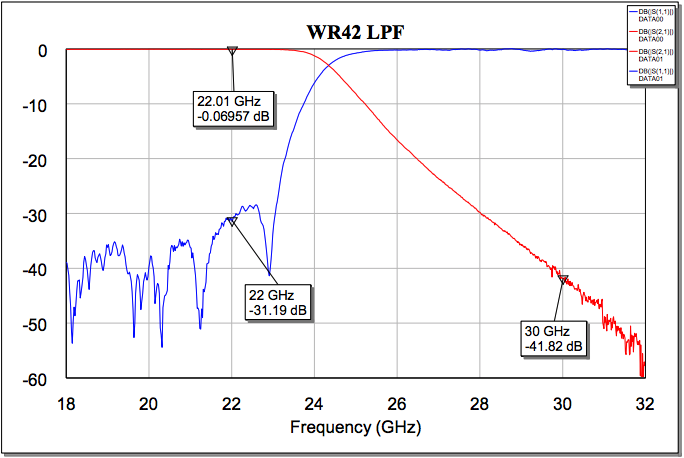

LPF-W-00034
Waveguide Low-Pass Filter
- WR42 Low-Pass Filter
- Insertion Loss <0.1dB
- Return Loss >25dB
- 6061 aluminum, Conversion Coating MIL-DTL-5541, Type II, Cl 3
- 1 inch length
Low Pass Filters
We can supply Low Pass Filters that can reject higher order modes even when forcibly induced, as well as standard Low Pass filters.

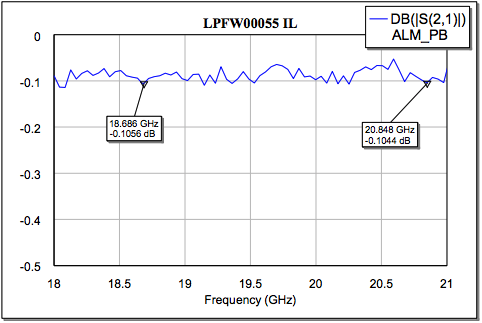

LPF-W-00055
- WR42 Lowpass Filter
- Insertion Loss 0.1dB
- Return Loss >22dB
- 6061 aluminum, Conversion Coating MIL-DTL-5541, Type II, Cl 3
- 2 inch length

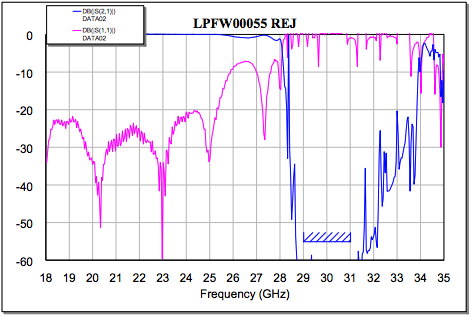

Filter tested with E & H waveguide bends at I/O Ports, inducing higher order modes. Test results show the filter will reject higher order modes.
Waveguide High Order Mode Low Pass Filters
- Rejects Higher Order Modes even when forcefully induced
- Low insertion loss
- Covers up to 67GHz
- High Rejection
Part number for ordering:
- 3dB Cutoff Frequency (MHz)
- Number of Sections
- Flange Size
Interface:
| WR15 | 15 |
| WR19 | 19 |
| WR22 | 22 |
| WR28 | 28 |
| WR34 | 34 |
| WR42 | 42 |
| WR51 | 51 |
| etc | etc |
Plot is for reference only. Contact Exceed Microwave for assistance
