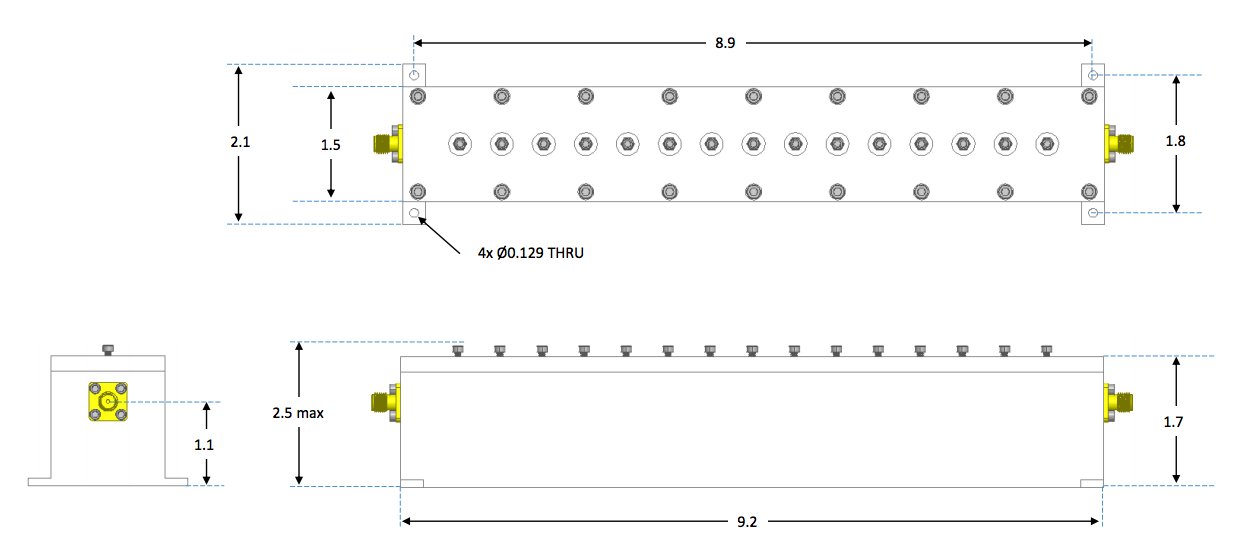

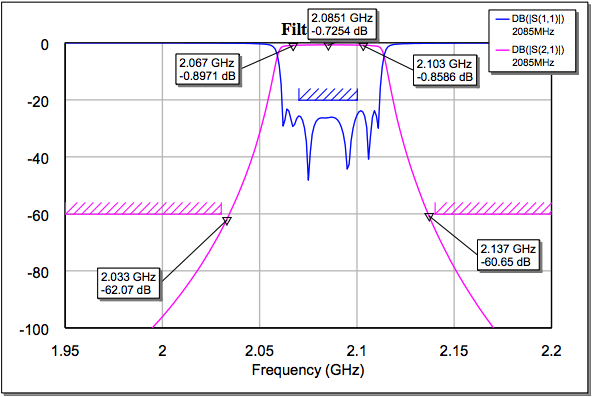

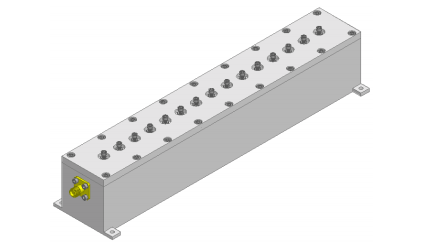

BPF-C-2085-50-8-SF-SF
S-Band Combline Filter
- 8 Section Combline Filter
- Insertion Loss =<1dB
- Return Loss=15dB min
- Silver plated aluminum housing and cover
- SMA Connectors
- 9.2 X 1.5 X 2.5 in
Band Pass Filters

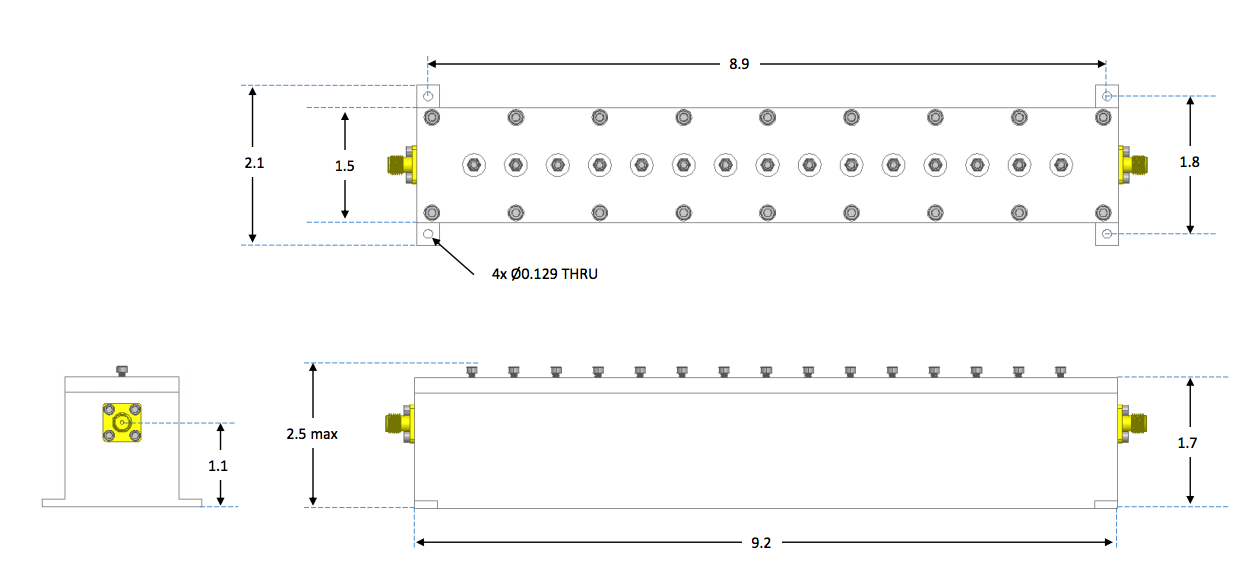

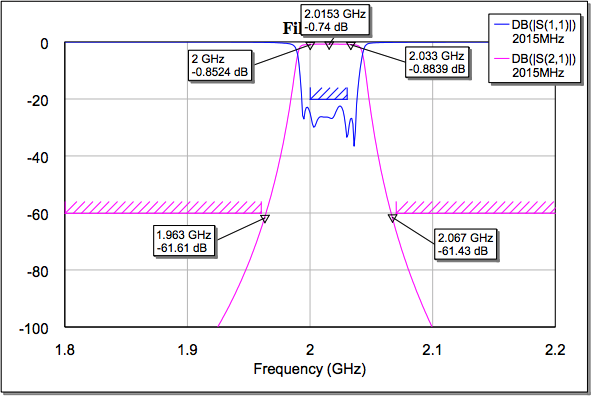

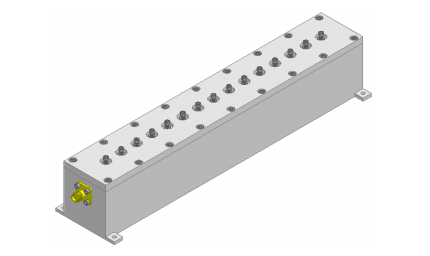

BPF-C-2015-50-8-SF-SF
S-Band Combline Filter
- 8 Section Combline Filter
- Insertion Loss =<1dB
- Return Loss=15dB min
- Silver plated aluminum housing and cover
- SMA Connectors
- 9.2 X 1.5 X 2.5 in

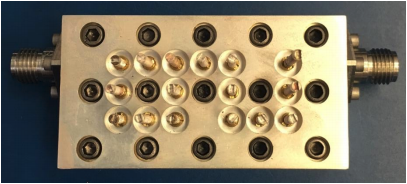

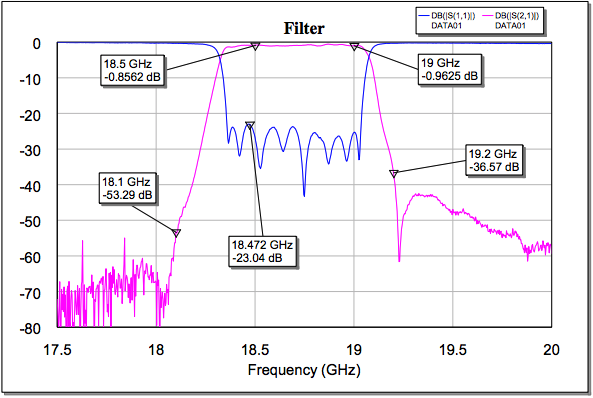

BPF-C-00056
- 18.7GHz 8,2,2 Band-Pass Filter
- 1dB Insertion Loss
- 23dB Return Loss
- Silver plated aluminum
Interdigital Cavity Bandpass Filters
- Low insertion loss
- Covers up to 20GHz
- 3dB Bandwidth from to 15% to 50%
Part number for ordering:
- Center Frequency (MHz)
- 3dB Bandwidth (MHz)
- Number of Sections
- Input connector
- Output connector
Interface:
| SMA Female | SF |
| SMA Male | SM |
| 2.92mm Female (>18GHz) | 2F |
| 2.92mm Male (>18GHz) | 2M |
| TNC Female | TF |
| TNC Male | TM |
| N Female | NF |
| N Male | NM |
Plot is for reference only. Contact Exceed Microwave for assistance

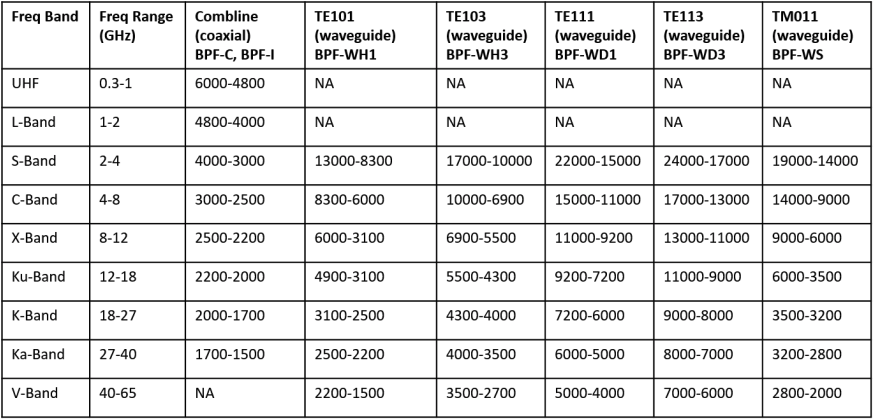

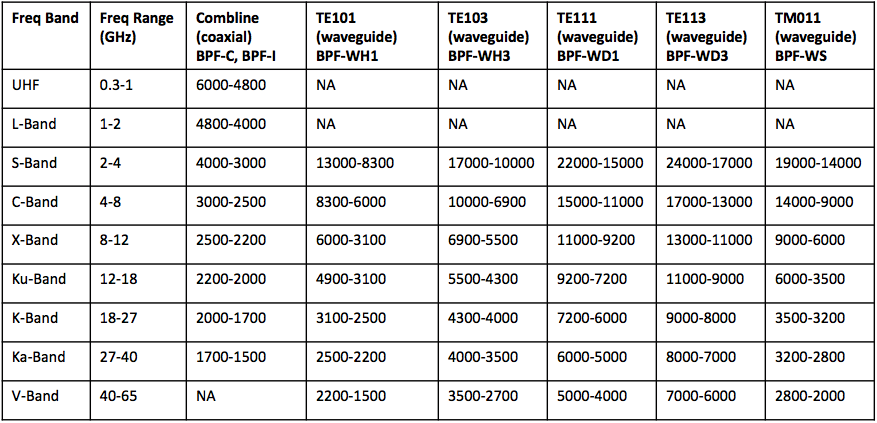

Typical Resonator Q Factor
•Q factors can vary from the values on the table depending on other requirements, such as size, finish.
Combline Cavity Bandpass Filters
- Low insertion loss
- Covers up to 40GHz
- 3dB Bandwidth up to 15%
Part number for ordering:
- Center Frequency (MHz)
- 3dB Bandwidth (MHz)
- Number of Sections
- Input connector
- Output connector
Interface:
| SMA Female | SF |
| SMA Male | SM |
| 2.92mm Female (>18GHz) | 2F |
| 2.92mm Male (>18GHz) | 2M |
| TNC Female | TF |
| TNC Male | TM |
| N Female | NF |
| N Male | NM |

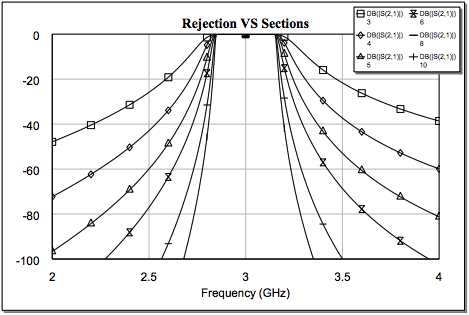

Plot is for reference only. Contact Exceed Microwave for assistance
Typical Resonator Q Factor
•Q factors can vary from the values on the table depending on other requirements, such as size, finish.

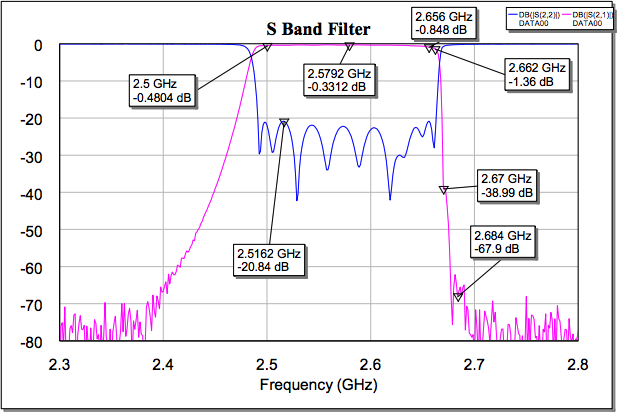

BPF-C-00032
S-Band Combline Filter
- 11,4,0 Combline Filter
- Very sharp high side rejection
- Fc=2.58GHz
- Insertion Loss =0.3dB @ Fc
- Return Loss=20dB min
- Silver plated aluminum housing and cover
- SMA Connectors
- 10 X 3 X 1.5 in

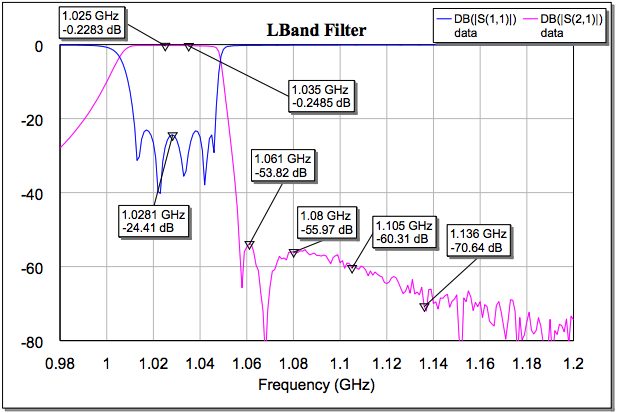

BPF-C-00057
L-Band Combline Filter
- 5,2,0 Combline Filter
- Very sharp high side rejection
- Fc=1.03GHz
- Insertion Loss =
- Return Loss=23dB min
- Silver plated aluminum housing and cover
- SMA Connectors
- 5.6 X 4.8 X 2.8 in
