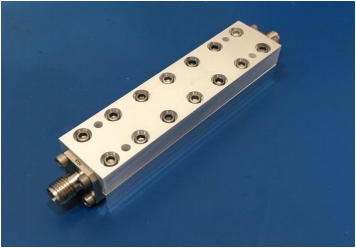

LPF-C-10000-19-SF-SF
Coaxial Low-Pass Filter
- 20dB Return Loss from 4~10GHz
- Chem Film Finish
Coaxial Low-Pass Filters
Coaxial Lowpass Filters
- Low insertion loss
- Cutoff up to 10GHz
- High Rejection
Part number for ordering:
- 3dB Cutoff Frequency (MHz)

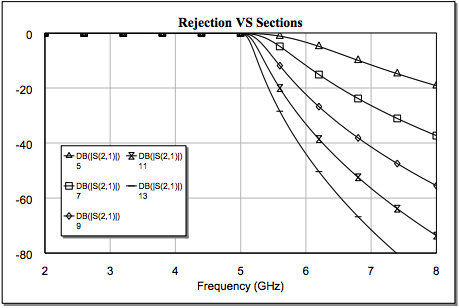

- Number of Sections
- Flange Size
Connectors:
| SMA Female | SF |
| SMA Male | SM |
| 2.92mm Female (>18GHz) | 2F |
| 2.92mm Male (>18GHz) | 2M |
| TNC Female | TF |
| TNC Male | TM |
| N Female | NF |
| N Male | NM |

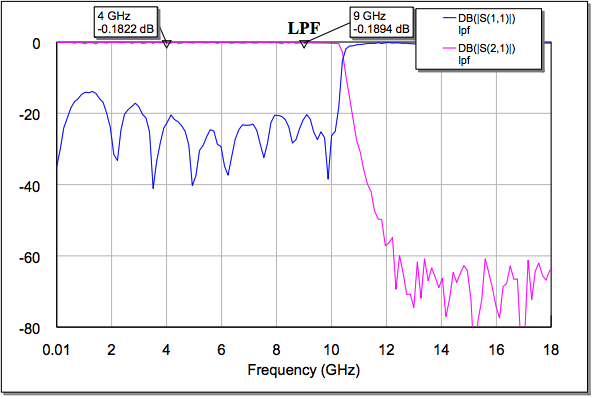

Plot is for reference only. Contact Exceed Microwave for assistance
